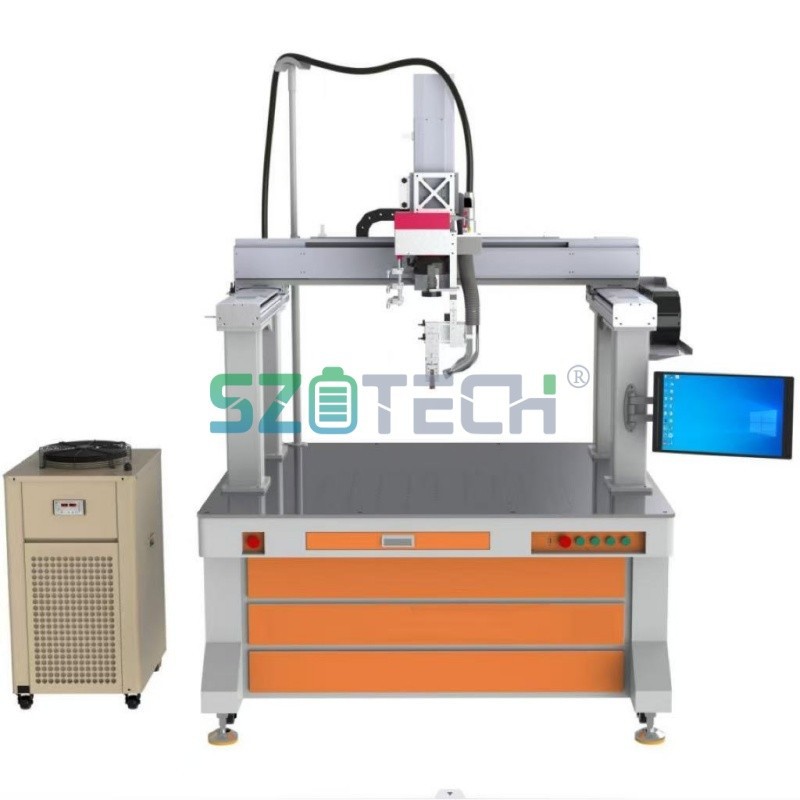

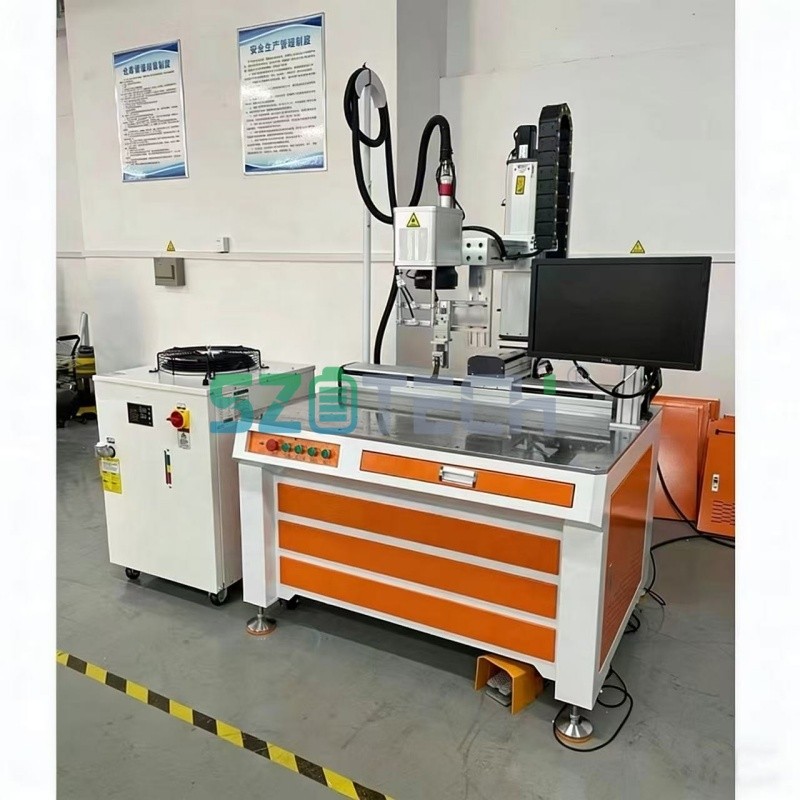

Hkrak ai Fiber Laser Welder gaw, n-gun ja ai -req galaw shapraw ai lam a matu
1000W-6000W) hpe n bung ai arung arai ra kadawn ai lam ni hte maren, galai shai mai ai n-gun (1000W-6000W) hpe jaw ya ai. 1070±10nm laser wavelength hte 20μm/50μm/100μm fiber core gaw grai kaja ai weld seams ni hpe jaw ya ai, titanium alloy hte tsi mawan n-gun n rawng ai n-gang zawn re ai hkam sha lam ni hpe matut mahkai na matu grai kaja ai.
Dai jak a X/Y/Z akyu rawng ai stroke (900(800)×600×400mm) gaw, bungli galaw ai arung arai ni hpe galai shai mai ai sizing hpe madi shadaw ya ai, n-gun n rawng ai hka katsi ai ladat gaw, 10℃-35℃grup yin hta ngang grin ai bungli galaw ai lam hpe makawp maga ya lu ai-n galai shai ai kaji ai{{tch}} galaw shapraw na matu ahkyak ai. 1000KG hte L2300×W1750×H2240mm npu hta, bungli galaw ai shara hpe hkye la lu ai, 10-100% n-gun hpe gram lajang lu ai majaw, bungli galaw ai ni hpe micro-welding bungli ni hte grau htum ai magri joint ni hpe galaw lu shangun ai.
Hka lum ai -hkrit tsang ai shara ni hpe shayawm kau ai hku nna, arung arai ni a hkrang nsam hpe shayawm ya lu ai, dai gaw n-gun ja ai dimensional hkrak ai lam hte post-processing efficiency ra ai custom project ni a matu ahkyak ai akyu langai rai nga ai.
Hpaji masa masat masa ni
|
(Laser masat masa) |
|
|
Laser n-gun |
1000W,1500W,2000W,3000W,4000W,6000W |
|
Nhtoi htoi ai fiber core |
20μm/50μm/100μm |
|
Laser n-gun galu ai |
1070±10nm |
|
Power hpe gram lajang mai ai |
10-100% |
|
Katsi ai ladat |
N hkring n sa katsi ai hka hpe katsi shangun ai |
|
Bungli galaw ai nbung katsi ai |
10℃-35 degree |
|
(Kaga masa lam ni) |
|
|
Kaja ai stroke |
X npawt 900 (800) MM/Y npawt 600MM/Z npawt 400MM |
|
Mashin n-gun |
<1000KG |
|
Yawng hkra shadawn shadang |
L2300×W1750×H2240mm |
