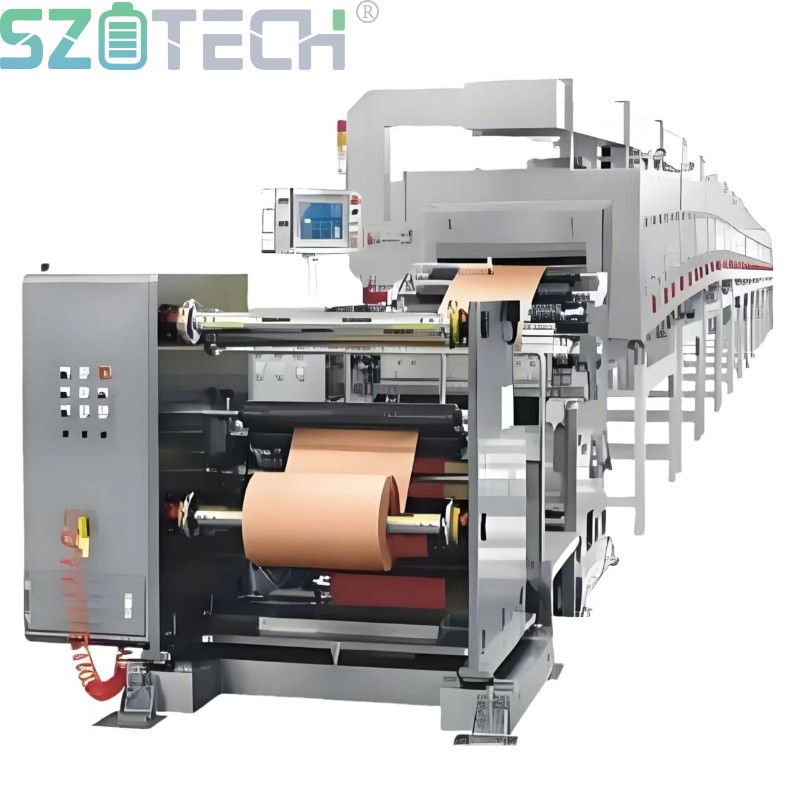

Dry Electrode Coating Machine hpe lithium{1}}ion hte n-gun ja ai battery ni hpe n-gun n rawng ai hku galaw shapraw na matu lang ai. Dry coating hpaji masa hte hkrak tup ai calendering hpe madung tawn nna, ndai ladat gaw 40–300μm lapran na galu kaba ai hte ±1μm daram galu kaba ai hpe hkang lu ai hkrang bung ai hka lim ai powder electrode layers ni hpe shapraw ya lu ai.

Solvent n lawm ai Battery galaw shapraw ai a matu, ndai jak gaw htunghking hku galaw ai solvent- hpe madung tawn ai coating galaw ai lam ni hpe yeng seng kau ya nna, electrode galaw ai shaloi solvent jai lang ai lam hpe shayawm ya ai. 80m/min du hkra lawan ai hku gram lajang mai ai roll-to-roll galaw ai lam hpe madi shadaw ya nna, LFP hte NCM zawn re ai magri n-gang, aluminum n-gang, electrode arung arai ni hte mung htuk manu ai.

Ndai jak gaw, n-gun n law ai hkrang hte modular hkrang hpe lang ai majaw, laboratory sawk sagawn ai lam, pilot-line jep chyoi ai lam, battery galaw ai lam ni hpe galaw na matu htuk manu ai. CE hte ISO-masat da ai arung arai ni hpe aten galu-chyam dinglik ai hte galaw shapraw ai chyam dinglik ai lam ni hta kam mai ai hku bungli galaw lu na matu jai lang ai.

Ndai dry electrode coating system hpe EV battery, n-gun shinggyin battery, hte rawt jat galu kaba wa ai lithium battery hpaji masa ni hpe gyin shalat nna galaw shapraw ai hta jai lang ai majaw, galaw shapraw ai ni hpe solvent-n lawm ai electrode galaw shapraw na matu tatut galaw mai ai hparan ladat hpe jaw ya nga ai.

Dai jak hta .

Ndai electrode hpe shinggrup da ai jak gaw, Panasonic/Ruineng mawdaw ni hte galaw ai servo-hpyen n-gun hpe hkang ai jak hpe bang da ai. Ndai system gaw ngang grin ai foil shamu shamawt ai lam hpe makawp maga ya nna, ±0.5mm EPC jut hpe sharai ya ai majaw, coating galaw ai shaloi electrode alignment hpe grau kaja hkra galaw ya ai.

±1μm hkrak ai jak rung n-gun rawng ai hkrak tup ai comma bar coating baw hpe EPDM back roller hte rau lang nna, n-gun rawng ai n-gun rawng ai n-gun hpe lu la na matu galaw ai. Ndai jak gaw 50–300g/m2 du hkra coating n-gun hpe madi shadaw ya ai majaw, lithium battery electrode arung arai amyu myu a matu htuk manu ai.

140℃du hkra RT du hkra bungli galaw ai nbung katsi ai wan n-ga hpe katsi ai daw hta jai lang ai. SUS304 stainless steel hte galaw da nna, 30kW n-gun rawng ai wan wut gaw, matut manoi electrode coating galaw na matu, n-gun n rawng ai hku katsi ai masa hpe jaw ya ai.

Ndai hkang ai ladat gaw Omron PLC hte touchscreen HMI hpe lang nna, bungli galaw ai ni hpe coating parameters ni hpe masat da ya lu nna, galaw shapraw ra ai lam ni hte maren, aten kadun hte matut manoi coating galaw ai ladat ni hpe galai shai ya lu ai.

1.5μm hta n law ai (sh) dai hte maren sha n-gun rawng ai hte ±1mm laman na coating edge accuracy hte ndai electrode coating jak gaw lithium battery galaw ai, EV battery galaw ai, n-gun hpe shinggyin tawn ai jai lang ai lam ni, pilot-scale electrode galaw ai lam ni a matu htuk manu ai.

Madung jak rung hkrang shapraw ai lam

N re ai	Mying	Dazik
1.	Nbung galai ai	Chint
2.	PLC hkang ai wa	Japan Omron/Huichuan
3.	Screen hkra ai	Kunlun pass mungdaw
4.	Lapran na relay	Schneider/Omron
5.	Servo mawdaw	Japan Panasonic/Ruineng (mari ai aten ladaw hte maren)
6.	Lamu ga shayawm ai	Aibo/Dick Cisco
7.	Circuit dawm ai jak	Chint
8.	Ac matut mahkai ai	Chint
9.	ngang kang ai-mungdan htawn tsun ai	Miwa mung kaw galaw ai
10.	Katsi ai hpe hkang ai jak	Omron/Atai
11.	Tinang hkrai shading sharai ai (hkap pat da ai)	Servo mawdaw hpe shachyut ai
12.	Tinang hkrai n-gun (shawng n-gun)	PID gaw mawdaw a lawan ai hpe hkang ai
13.	Shi hkum shi n-gun (hpang n-gun)	PID gaw mawdaw a lawan ai hpe hkang ai
14.	Nhtoi htoi ai myi	Japan mungdan na Panasonic
15.	Nbung n-gun	Jadek
16.	Rod n lawm ai cylinder	Shian
17.	Sung ai hka htung ball bearing	NSK/SKF
18.	Nbung shapraw ai jak	N-gun n rawng ai n-gang, law law-wing nsen n law ai, Guangzhou

Hpaji arung arai ni a madung bungli ni

N re ai	Amyu	Hpaji masa	Myit yu ga
1.	Htap htuk ai ladat	Litium magri phosphate, litium cobalt, litium manganat, ternary, litium nikel kobalt manganat hte kaga masa ni hpe jai lang ai; Sau, hka masa hku nna kaja ai hte n kaja ai electrode hpe shinggrup ai ladat; Supercapacitor hpe ka-up ai ladat
2.	Substrate galu kaba ai hpe galaw u	Aluminium n-gup magap (Al): 8 ~ 30um Magri n-gup magap (Cu) : 6 ~ 30um
3.	Design galaw ai roll ntsa a dam lada ai	450 mm
4.	Coating dam ai hpe sadi u	100~350mm-380mm,Madang 400mm
5.	Hpaji jak rung bungli galaw ai lawan ai	4m/min
6.	Coating lawan ai	1-2m/min	Stock hte coating n-gun hta hkan nna
7.	Slurry a n-gun atsam a matu htuk manu ai	Sau rawng ai hka 2500-10000 Cps	Kalang lang chyai ai
		Hka hta rawng ai hka 1000-6000 Cps	Kalang lang chyai ai
		2000~12000 Cps	Matut manoi htu ai
8.	Langai maga de na coating hkyet ai galu kaba ai lapran	50-150μm 50~300g/m²	Arung arai arawn alai ni a majaw, aten langai hta n hkrum lu na matu mung mai byin ai .
9.	N law htum aten kadun galu ai	4mm
10.	Daw law law a matu n law htum coating galu ai	20mm
11.	Solvent a arawn alai Htap htuk ai ngang kang ai arung arai	Sau rawng ai ntsin NMP(sg=1.033,bp=204 madang)	Reference a matu sha
11.	Solvent a arawn alai Htap htuk ai ngang kang ai arung arai	Hka hta rawng ai H2O/NMP(sg{2}},bp{4}} madang)	Reference a matu sha
12.	N law htum aten kadun galu ai	Kathod SC . 55%±20%
12.	N law htum aten kadun galu ai	Anode SC . 55%±20%(PVDF ladat)	Reference a matu sha
13.	Coating ladat	Single-layer shawng hte hpang 2 daw n bung ai lapran aten kadun laman htawt sit ai coating/lahkawng ngu na ntsa lam shi hkrai shi hkan tam ai/matut manoi coating
14.	Substrate hprawng hkawm ai lam	Shawng de ka-up ai, substrate kaja ai hte hpang de n-gun n rawng ai foil bungli galaw ai
15.	Muk kabaw ai lam shinggan de roll guide	φ80mm daram aluminum lam madun shingnip, ntsa kaw na ngang kang ai oxidation	Rc0.4 hpe ngut hkra galaw u.

Daw langai hte langai a hkrang masa .

1). Winding ladat:

N re ai	Amyu	Hpaji masa	Myit yu ga
1.	Roller ntsa kaw jung da ai hkrang	Monolithic dingyang jung da ai (30mm galu ai)
2.	Tension hpe hkang ai ladat	PID hkang ai mawdaw a lawan ai hpe hkang ai n-gun pat shingdang ai shara, n-gun hpe hkang ai n-gun
3.	Shading sharai ai ladat	Shi hkum shi EPC hkang ai, stroke 50mm, n bung ai lam hpe sharai ya ai hkang ai hkrak ai ±0.5mm	Ultrasonic hku nna sawk sagawn ai, dan dawng ai shingnip hpe chye ginhka lu ai
4.	Winding ladat	Dai arai roll hpe 3-inch inflating shaft hte ngang ngang jum da nna, maga mi de madi shadaw da ai;
5.	Substrate hprawng hkawm ai lam	Shawng de hte hpang de
6.	N-gun n rawng ai lam	Ntsa hte lawu
7.	N-gun n rawng ai shingnip diameter	Ф85~Ф300mm
8.	Nbung n-gun rawng ai shaft a kaba dik htum hkam sharang lu ai atsam	100Kg/ langai mi
9.	Drum a hkrang masa	Galu kaba ai 430mm hta n law ai (sh) maren sha re, kata maga de 76mm(3 inches) daram galu ai
10.	Nbung n-gun rawng ai shaft strip ni a jahpan	A daw mi
11.	Hkap la ai shara	Lahkawng lang lang ai shingkyit, hpaw na shara
12.	Mawdaw gau ai ladat	Inverter gaw AC mawdaw hpe hkang ai

2). Bawnu hkrang:

N re ai	Amyu	Hpaji masa	Myit yu ga
1.	Madung mawdaw gau ai mawdaw	Servo mawdaw
2.	Kalang lang mawdaw gau ai mawdaw	Servo mawdaw
3.	Scraper gawgap ai lam	Solid set amyu lahkawng-ma maga comma htu ai, npu npawt, set 40Cr wan jak
4.	Scraper Angle kayin ai hpe hkang ai	Handle hpe htawt nna shinggrup u .
5.	Hpun palawng	Chrome hte shinggrup da ai npu, Ø128mm galu ai; Hollow hkrang
6.	Hpang de shinggrup	Ø128mm galu ai, EPDM hte ka-up da ai, roller ntsa hpe htu ai
7.	Tank kayau ai	Dai rodless cylinder gaw dingyang shamu shamawt nna, n-gun n rawng hkra lawan ai hpe gram lajang mai ai .
8.	Scraper a kalang lang tsaw ai hpe gram lajang da ai	Hkum tsup ai servo tool hpe gram lajang ai, tool hkam ai shara hpe sharawt ai hpe hkang ai. 1~300um daram sharawt lu ai
9.	Baffle plate	Match steel plate + foaming panglai ntsa, coating galu kaba ai hpe gram lajang mai ai
10.	Bungli galaw ai ladat	Screen hpe hkra ai + button hpe galaw ai	Masha law malawng galaw ai lam gaw shinggan sumri re.

3).Baking

N re ai	Amyu	Hpaji masa	Myit yu ga
1.	Hkum hkrang kata na bile structure hpe katsi hkra galaw u .	Shanglawt ai kata hkrang shapraw ai lam, sanghpaw li hpan hkrang shapraw ai lam
2.	Oven galu ai	3 daw, langai hpra 1.5 meter, yawng 4.5 meter
3.	Hkyet mat ai hka htung hte nbung hka htung a matu magri arai	Kata na liner SUS304 n-gang, shinggan liner SUS 201 n-gang
4.	Oven lam matsun roller hpe mawdaw gau ai ladat	Passive shapoi ai ladat
5.	Katsi ai hpe hkang ai	Kalang lang bungli galaw ai nbung katsi ai hpe hkang ai, nbung katsi ai hpe yu reng ai alarm hpe makawp maga ai, nbung katsi ai hpe yu reng ai alarm hpe makawp maga ai, nbung katsi ai hpe nsen hte nhtoi alarm pru wa na, main heating power supply hpe dawm kau na ngu garan nna;
6.	Katsi ai ladat	Wan n-gun hte katsi shangun ai, nbung katsi shingjawng ai ladat
7.	Oven langai sha lum ai atsam	10KW/ n-gun; 3 daw yawng 30KW;
8.	Muk kabaw ai hka htung kata na katsi ai lam	Nta kata na katsi ai ~140 degree, daw langai a katsi ai shai hkat ai lam < 5 degree, lahkam shagu hpe shanglawt ai hku hkang lu ai.
9.	Operation galaw ai shaloi hkum hkrang ntsa na katsi ai lam	Shadawn ai nbung n-gun pru ai lam masat da ai nbung n-gun 50% hta n law ai (sh) maren sha re
10.	Nbung gap ai ladat	Lawu hte lawu na nbung hpe gap ai, lawu de bai nhtang wa ai nbung, nbung nta a shanglawt ai katsi ai hkum hkrang, shanglawt ai nbung n-gun hpe hkang ai, nbung n-gun hpe shanglawt ai hku hkang ai
11.	Daw shagu hta nbung pru ai nsen hpe hkang ai	Mechanic valve hku nna shanglawt ai hku hkang lu ai
12.	Katsi ai fan hpe hkang ai	Tinang hkrai hkang ai
13.	Exhaust fan hpe hkang ai	Tinang hkrai hkang ai
14.	Katsi ai hpe hkang ai	ngang kang ai-mungdan htawn tsun ai
15.	Solvent bai lu la ai ladat	N rai, install galaw na matu sha jaw da ai
16.	Yawng pru ai nbung n-gun	500-1300㎥/H	Nbung valve hpe gram lajang mai ai
17.	Exhaust fan garan ai lam	1 wan pru ai fan
18.	Madung hkum hkrang n-gun	Lahkawng -layer hkrang, n-gun n-gun 80mm, shingnip shingna n-gun n-gun

4). Traction hte shinggrup ai ladat:

N re ai	Amyu	Hpaji masa	Myit yu ga
1.	Winding n-gun hpe hkang ai ladat	Taper tension control, winding diameter a kaba ai hte maren, tension a kaba ai hpe gram lajang nna, roll kaba hpe n bung ai hku n hkam la lu hkra galaw ra ai.
2.	Winding hpe sharai la ai	EPC hpe shi hkrai shi hkang ai, hkawm sa ai 50mm
3.	Winding ladat	Dai roll hpe 3-inch inflatable shaft hte ngang ngang jum da nna maga mi de madi shadaw da ai .
4.	Substrate hprawng hkawm ai lam	Shawng de hte hpang de
5.	Winding maga de	Ntsa hte lawu
6.	Winding diameter	Ф85~Ф300mm
7.	Nbung n-gun rawng ai shaft a kaba dik htum hkam sharang lu ai atsam	100kg/hpun
8.	Drum a hkrang masa	Galu kaba ai 430mm hta n law ai (sh) maren sha re, kata maga de 76mm(3 inches) daram galu ai
9.	Nbung n-gun rawng ai n-gang ni a jahpan	A daw mi
10.	Hkap la ai shara	Rod langai sha dip ai shingkyit, hpaw da ai shara
11.	Mawdaw gau ai ladat	Servo mawdaw hpe hkang ai
12.	Roller lam matsun jung ai hkrang	Dingyang hpan

N re ai	Amyu	Hpaji masa	Myit yu ga
1.	Madung hkang ai ladat	Laksan hkra ai shingnip, PLC, module, servo ladat
2.	Bungli galaw ai ladat	Manual, shi hkum shi, lawan ladan jahkring kau ai; Dai jak hpe 2019 ning shawng hte hpang de mung galaw mai ai.
3.	Coating hte kalang lang galu ai hpe masat da ai	20.0 ~ 3200.0mm galu ai	Software gaw range hpe pat da lu ai .
4.	Alarm masa	Kalang lang galu ai 4.0 ~ 300.0mm
5.	Lahta na bungli	Device hkrat sum mat ai shaloi, touch screen kaw na dai hte maren shut ai lam hpe tsun ai screen hpe madun na re .
6.	Kalang lang baw hte n-gup n-gun hpe gram lajang ai ladat	Hpaw shapraw ai jahpan/ aten galu

5). Hkang ai ladat:

6). Shi hkum shi lusha jaw sha ai ladat:

mari ai wa - madu ai

Coating arung arai ni a hkrang nsam kaba ai hte hkam kaja lam:

6500 * 1298 * 1971 (galu × galu × galu); 3000 kg (madung hku sha)

Arung arai hkrak ai lam

1. Hardware hkrak ai lam

N re ai	Amyu	Hpaji masa	Myit yu ga
1.	htu ai	Round runout 1.5um hta n law ai (sh) maren sha, dingyang 1.5um hta n law ai (sh) maren sha re
2.	Hpun palawng	Round runout 1.5um hta n law ai (sh) maren sha, dingyang 1.5um hta n law ai (sh) maren sha re
3.	Hpang de shinggrup	Circular runout 15um hta n law ai (sh) maren sha, dingyang 15um hta n law ai (sh) maren sha re
4.	Deviation hpe sharai la ai	±1mm
5.	Tool setting gaw bai kahtap tsun ai hkrak ai lam hpe hkang ai	±1um
6.	Kahtet ai hpe hkang ai hkang ai hkrak ai lam	±2℃hta n law ai (sh) maren sha re.

2.Coating hkrak ai lam

Amyu	Myit yu ga	Madang (Lawan ai lam V=1.5 m/min)
	A (hpang hkan)	1mm hta n law ai (sh) maren sha re (slurry a n-gun hte binder a arawn alai ni hte seng ai)
	B(Bawnu n kaja ai shara)	10mm
	C(N-gup n bung ai shara)	6mm
	D(Edge hkra machyi ai shara)	3mm hta n law ai (sh) maren sha re.
	E(galu kaba shut ai) /H(margin shut ai)	±0.5mm hta n law ai (sh) maren sha re ±0.7mm hta n law ai (sh) maren sha re
	F (galu kaba shut ai)	±1mm
	M(galu kaba shut ai)	±1mm
	G1 (baw galu ai)	-5~+6um
	G2 (N-gup galu ai)	-5~+6um
	Ngai (hpang de nhtang hkrang shapraw shut ai)	±0.7mm hta n law ai (sh) maren sha re ±1 mm hta n law ai (sh) maren sha re.
	J Maga mi de na ntsa density a galu kaba ai lam .	Hkum hkrang n-gun shut ai lam ±1.5% hta n law ai (sh) maren sha re ±1.5um hta n law ai (sh) maren sha re ai n-gun shut ai lam
Galu kaba ai	(B, C, D shara hpe shaw kau na)	20.0-3200.0mm
	L1(Sumla hkrung galu ai)	4.0-3200.0mm
	L2 (kalang lang galu ai)	L1 +L2 120mm hta grau kaba ai (sh) maren sha re
